| Quantity: | |
|---|---|

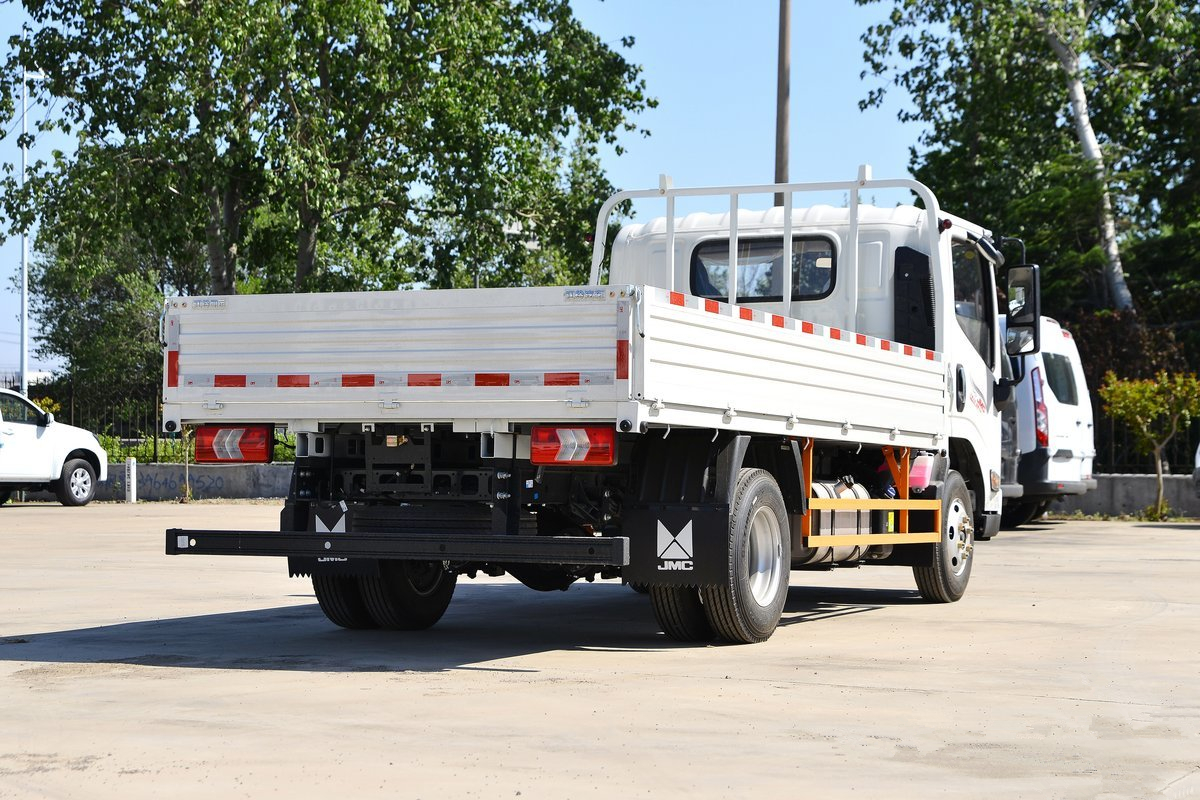

JX1054
JMC
8704 2100.00
Product brand | JMC | |

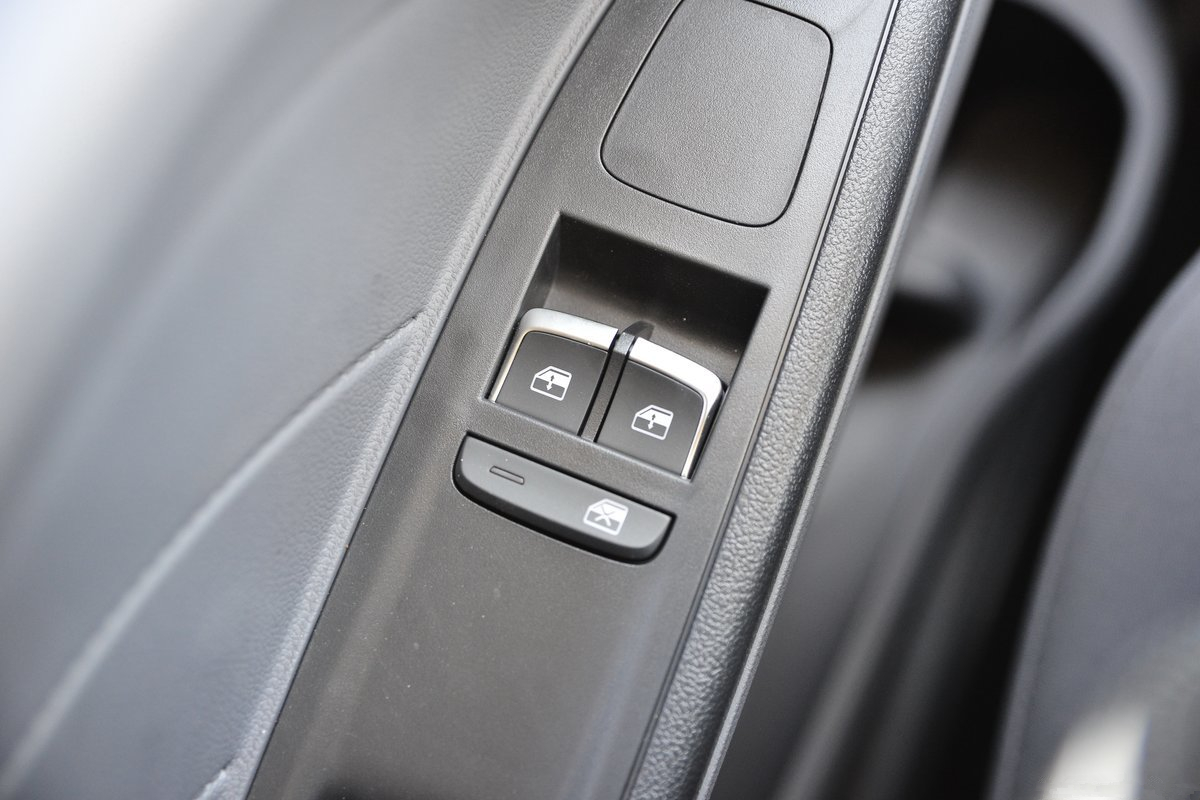

Cabin / Passenger capacity | New model T822,wide body,single row,adjustable steering wheel,co-pilot sun visor,front fog lamp,tilting cab,radio+MP3+USB interface, remote central lock,air conditioner,electric lifting glass for both left and right doors | |
Chassis | Model | JX1054 |
Overall dimensions | 5990x2180x2445mm (L*W*H) | |
Gross vehicle weight | 5000kgs | |
Curb weight | 2400kgs | |
Drive type | 4x2 | |
F/R suspension | 1075/1535mm | |
Wheelbase | 3360mm | |
Number of axles | 2 | |
Axle-load | 2000/4400 kg (one rear driving axle) | |
Approach/Departure angle | 19/15 ° | |
Number of leaf spring | 3/8+3 | |
F/R track | 1800/1720 mm | |
Tire ( No. & specification) | 6+1pcs, 7.00R16LT 10PR (Tubeless) | |
Max speed | 110 km/h | |
Brake system | Hydraulic braking with ABS and exhaust brake | |
Steering | Left hand drive with power steering | |
Transmission | Manual,5 forward ＆ 1 reverse gears | |
Engine | Engine model | JX493 (Euro II) |
Max.power | 68KW(92HP) | |
Description | In line,water cooled,four strokes,turbo charged,inter cooled, direct injection,diesel engine (ISUZU technology) | |
Rated revolution | 3600rpm | |
Max torque | 220N.m@1800~2200rpm | |
Exhaust | 2771 ml | |
Cargo box | Dimension | 4200x2050x440mm (L*W*H) |
Material | Carbon steel | |
Thickness of front and rear plate | 3 mm | |
Thickness of side plate | 2 mm | |
Thickness of bottom plate | 3 mm | |
Painting | Description | With sand blasting, painted with epoxy paint,finished color |
Warranty | Year | 1 |
Product brand | JMC | |
Cabin / Passenger capacity | New model T822,wide body,single row,adjustable steering wheel,co-pilot sun visor,front fog lamp,tilting cab,radio+MP3+USB interface, remote central lock,air conditioner,electric lifting glass for both left and right doors | |
Chassis | Model | JX1054 |
Overall dimensions | 5990x2180x2445mm (L*W*H) | |
Gross vehicle weight | 5000kgs | |
Curb weight | 2400kgs | |
Drive type | 4x2 | |
F/R suspension | 1075/1535mm | |
Wheelbase | 3360mm | |
Number of axles | 2 | |
Axle-load | 2000/4400 kg (one rear driving axle) | |
Approach/Departure angle | 19/15 ° | |
Number of leaf spring | 3/8+3 | |
F/R track | 1800/1720 mm | |
Tire ( No. & specification) | 6+1pcs, 7.00R16LT 10PR (Tubeless) | |
Max speed | 110 km/h | |
Brake system | Hydraulic braking with ABS and exhaust brake | |
Steering | Left hand drive with power steering | |
Transmission | Manual,5 forward ＆ 1 reverse gears | |
Engine | Engine model | JX493 (Euro II) |
Max.power | 68KW(92HP) | |
Description | In line,water cooled,four strokes,turbo charged,inter cooled, direct injection,diesel engine (ISUZU technology) | |
Rated revolution | 3600rpm | |
Max torque | 220N.m@1800~2200rpm | |
Exhaust | 2771 ml | |
Cargo box | Dimension | 4200x2050x440mm (L*W*H) |
Material | Carbon steel | |
Thickness of front and rear plate | 3 mm | |
Thickness of side plate | 2 mm | |
Thickness of bottom plate | 3 mm | |
Painting | Description | With sand blasting, painted with epoxy paint,finished color |
Warranty | Year | 1 |
