| Quantity: | |
|---|---|
QL1100A8MAY
ISUZU
8704223000
Chassis model | QL1100A8MAY | |
Engine | ||
Model | 4HK1-TCG61 | |
Description | In-line/4 cylinders/water cooled/turbo charged/inter cooled/diesel engine | |
Rated power of engine (kw/HP) | 141/190 | |
Maximum torque (N.m@rpm) | 510@1600 | |
Displacement (ml) | 5193 | |
Emission level | Euro III | |
Gearbox | ||
Description | Manual,MLD,6 forward gears,1 reverse gear | |
Front / Rear axle | ||
Front axle load (Kg) | 4000 | |
Rear axle load(Kg) | 7000 | |
Drive type | 4X2 | |
Type of tire | 235/75R17.5 | |
Quantity of tires | 6+1 | |
Quantity of leaf spring | 8/10+6 | |
Brake system | Service brake type | Drum type,pneumatic double loop braking |
ABS | Provided | |
Parking brake type | Energy storage spring rear wheel braking | |
Steering device | Left hand drive,power steering | |
Weight parameter | ||
Curb weight (Kg) | 4090 | |
Load weight(Kg) | 8000 | |
Performance parameter | ||
Maximum speed (km/h) | 110 | |
Maximum grade ability (%) | ≥25% | |
Dimension parameters | ||
Overall dimensions (LxWxH)mm | 7950×2307×2450 | |
Internal box dimensions (LxWxH)mm | 6008×2150×450 | |
Wheelbase (mm) | 4475 | |
Front/rear wheel track (mm) | 1680/1650 | |
Front/rear suspension (mm) | 1110/2365 | |

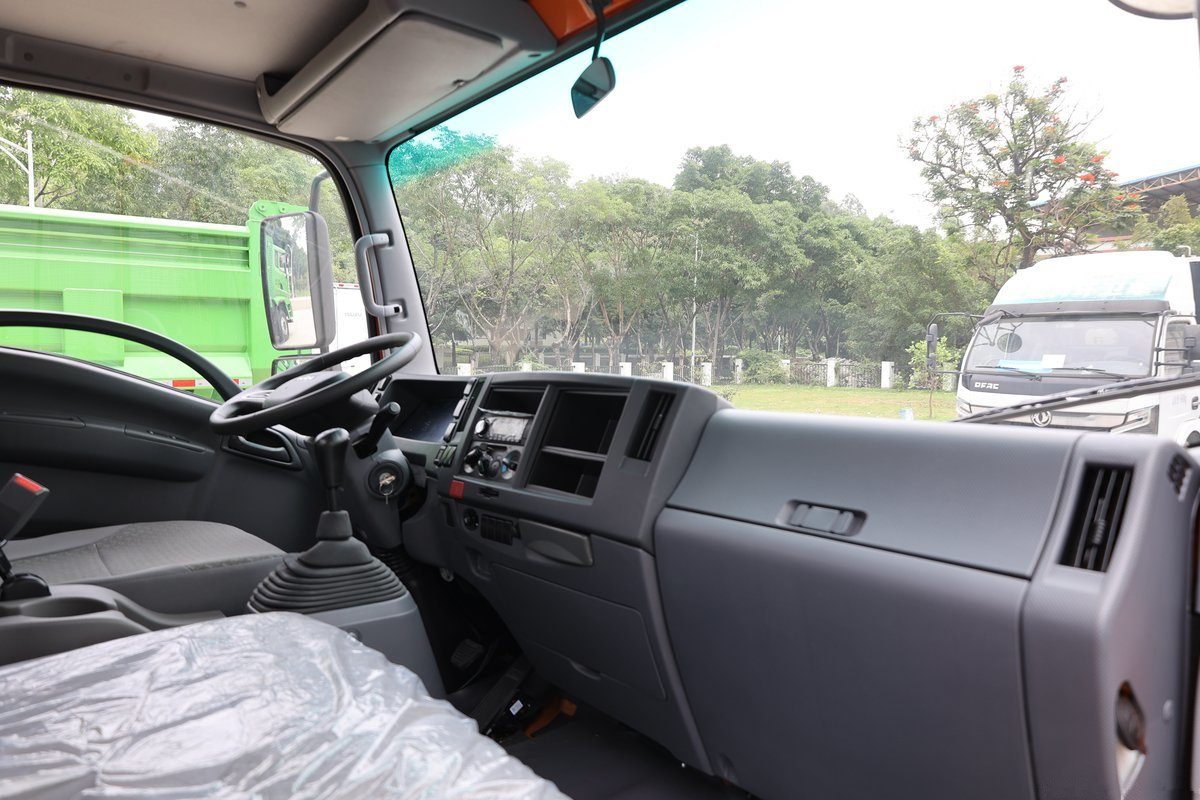

Cabin | 700P,single row,luxury type,with power clutch,A/C,radio,USB interface,safety belt,mechanical tiltable | |
