SC1022DEAQ6
CHANGAN
8704310000

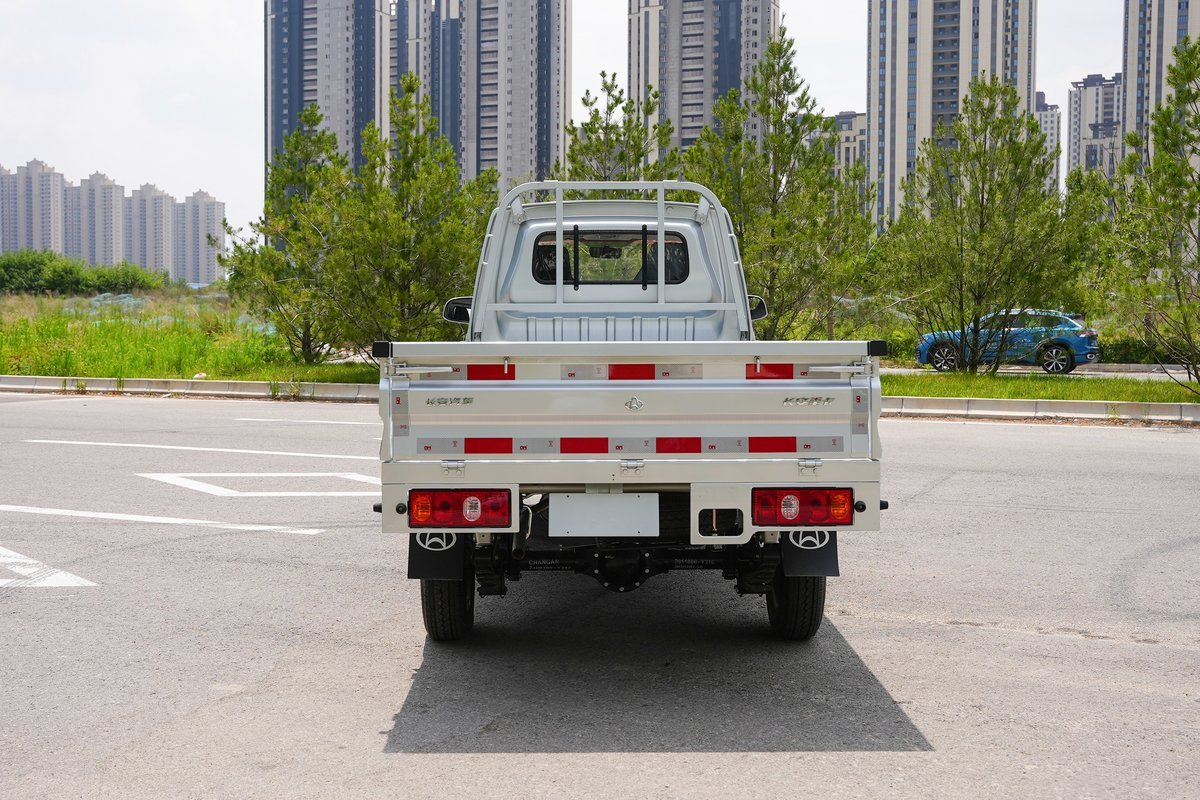

Vehicle name | Cargo truck | Chassis model | SC1022DEAQ6 | |
Weight parameter | Curb weight （Kg） | 1135 | Overall dimension (mm) | 4890X1610X1960 |
Load capacity （Kg） | 1100~2200 | Wheel base (mm) | 3200 | |
Total weight (Kg) | 2365 | Cargo box dimension (mm) | 3060X1515X370 | |
Engine | Model | JL474QAK |
Description
| 4-cylinders,in line, 4-valves,DOHC, mechanical tappet, MPI | |
Max.output power （KW/HP） | 85/116 | Displacement(ml) | 1499 | ||
Fuel type | Gasoline | Emission level | Euro 6 | ||
Performance
| Max. vehicle speed(km/h) | 110 | Running angle(°) | Approach angle | 35 |
Fuel consumption (L/100km) | 6.7 | Departure angle | 28 | ||
Description of gearbox | Manual,5 forward gears,1 reverse gear | Clutch | Diaphragm spring clutch | ||
Brake system | Hydraulic brake | ABS,OBD | Provided | ||
Specification of tyre | 175R14LT 8PR | Quantity of tyres | 4+1pcs | ||
Frame | Stamping riveted structure | Number of leaf spring | -/6 | ||
Cabin | Single row,luxury sedan configuration,2 passengers allowable | Electric system | 12V | ||
Steering type | Left hand drive,power steering provided | Fan heater | Provided | ||
Remark | A/C,electric window and central lock (Optional +200USD) | ||||
Vehicle name | Cargo truck | Chassis model | SC1022DEAQ6 | |
Weight parameter | Curb weight （Kg） | 1135 | Overall dimension (mm) | 4890X1610X1960 |
Load capacity （Kg） | 1100~2200 | Wheel base (mm) | 3200 | |
Total weight (Kg) | 2365 | Cargo box dimension (mm) | 3060X1515X370 | |
Engine | Model | JL474QAK |
Description
| 4-cylinders,in line, 4-valves,DOHC, mechanical tappet, MPI | |
Max.output power （KW/HP） | 85/116 | Displacement(ml) | 1499 | ||
Fuel type | Gasoline | Emission level | Euro 6 | ||
Performance
| Max. vehicle speed(km/h) | 110 | Running angle(°) | Approach angle | 35 |
Fuel consumption (L/100km) | 6.7 | Departure angle | 28 | ||
Description of gearbox | Manual,5 forward gears,1 reverse gear | Clutch | Diaphragm spring clutch | ||
Brake system | Hydraulic brake | ABS,OBD | Provided | ||
Specification of tyre | 175R14LT 8PR | Quantity of tyres | 4+1pcs | ||
Frame | Stamping riveted structure | Number of leaf spring | -/6 | ||
Cabin | Single row,luxury sedan configuration,2 passengers allowable | Electric system | 12V | ||
Steering type | Left hand drive,power steering provided | Fan heater | Provided | ||
Remark | A/C,electric window and central lock (Optional +200USD) | ||||
